Cooking Vacuum Tanks Sterner
Item: Z-1200-Sterner-VacuumCooking-Tank

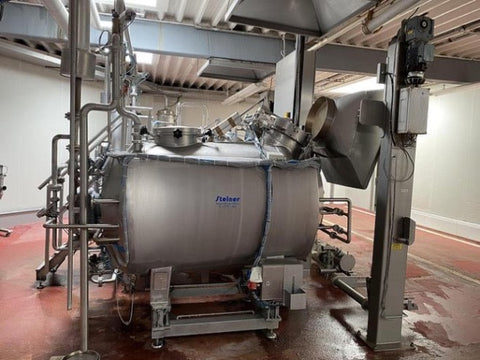

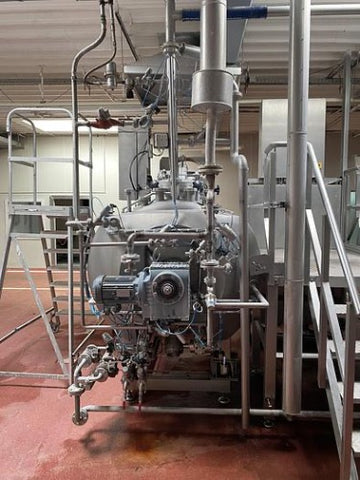

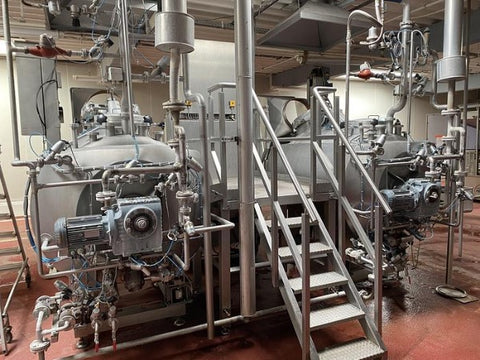

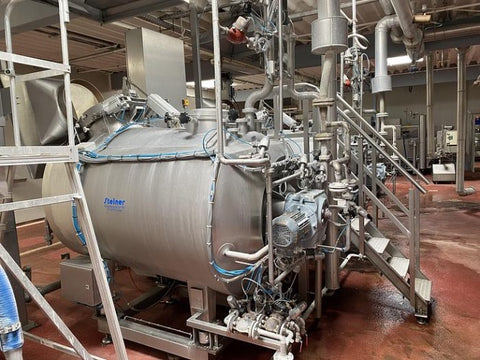

Double - vacuum - cooking plant, make Steiner, type LVAK 1200, year 2011
2 pieces of horizontal boiling pans for cooking, 1,200 kg / batch
Can uses for batch cooking of groats or fruit preparations,
Horizontal with an inclination of 4° towards the outlet,
Indirect heating via double jacket (max. 4 bar overpressure saturated steam),
With spiral agitator, also heated (with vacuum steam or hot water),
PTFE wall scraper, movably arranged,
Pneumatically hinged dome cover DN 500,

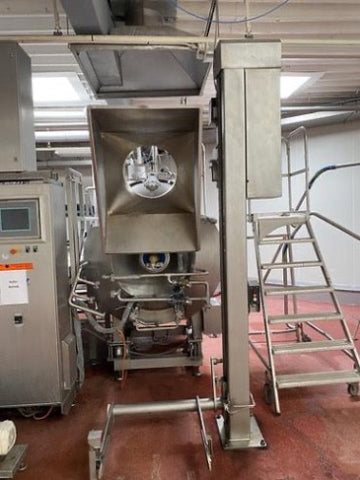

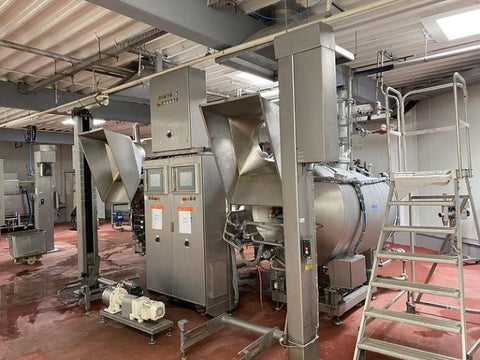

Feeding via lifting and tipping device and swiveling hopper,
Kieselmann ball valve DN 80 for the product - outlet,
Usable capacity: approx. 1,670 liters each,
Inner diameter: approx. 1,150 mm,
Inner depth: approx. 1,250 mm,
Overall length, including agitator drive: approx. 2,000 mm,
