Item: AL-10550-Grundfos pump NK80

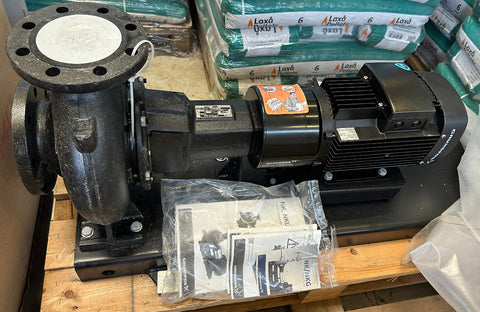

GRUNDFOS Pump Set – NK80-160/161 A1F2A – 2.2 kW – New / Never Used

Type: Grundfos NK

Model: NK80-160/161 A1F2A

Impeller trim: 206 mm

Pump type: End-suction centrifugal pump (EN 733 / ISO 2858)

Condition: New / never used

Manufactured in: Hungary

Pump Technical Specifications

• Flow (Q): up to 93 m³/h
• Head (H): up to 6.4 m
• Pressure/temperature: 16 bar / 120 °C max
• Material: Cast iron
• Connections: DN80 inlet / DN65 outlet (flanged)
• Speed: 1450 rpm
• Mounting: Horizontal on baseplate
• Shaft seal: Mechanical seal (standard Grundfos)

 Motor Technical Specifications

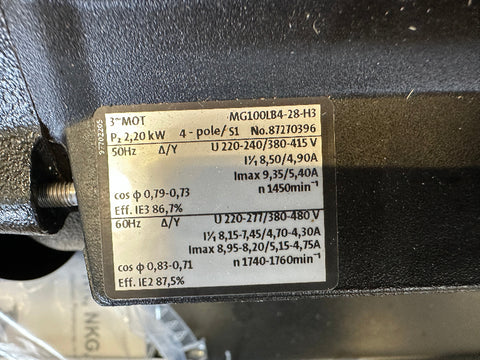

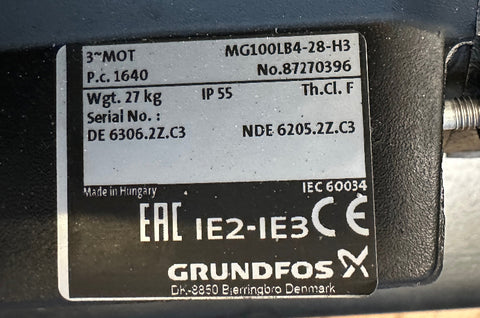

Grundfos IE2 Motor – MGI100LB4-28-H3

• Power: 2.20 kW
• Voltage: 220–240 / 380–415 V Δ/Y (50 Hz)
• Current: 8.50 / 4.90 A
• Speed: 1450 rpm
• Protection class: IP55
• Weight: 27 kg
• Efficiency: IE2 / 87.5%
• Power factor: cos φ 0.83
• Poles: 4-pole

Application Areas

Suitable for:

• Water supply and pressure boosting
• Industrial installations
• Heating and cooling systems
• CIP and utility water
• Agriculture and process water
• Pumping of clean or slightly contaminated liquids
