Item: A-Silos Tank 200 m3

Fabrics new!!

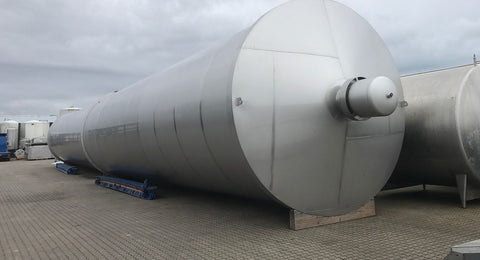

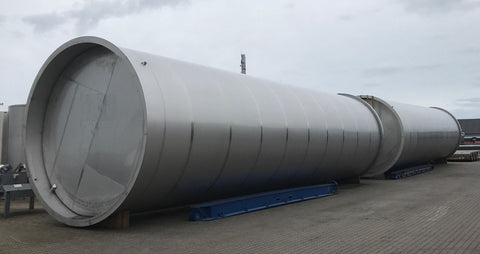

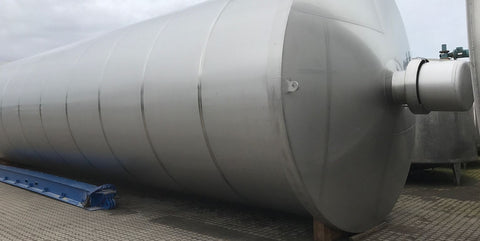

Stainless Steel Silos tank, vertical, capacity 200.000 L, Possible for make new insulation and mount Agitator at side, 3 pieces.

Dimension: Diameter : 4100 mm,

Cylindrical Height : 15000 mm

Total Height 16500 mm

Foundation : Skirt for filling with concrete.

Bottom : Flat sloping bottom

Outlet 100 mm

Outlet height 400 mm

Top of the tank : Air in/outlet 500 mm with gauze

Inside : polished welds

Thickness of plates: Bottom:  4 mm, Cylinder :  4 and 3 mm, Top : 3 mm

Insulation 100 mm,  (Possible for choose color of outside plates of insulation).
