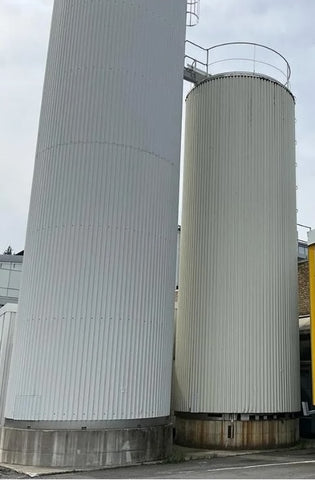

Vertical Insulated Silos Tank 100m3
Item: A-11262-Silos tank 100 m3 , capacity 100.000 L,
Insulated Vertical Stainless Steel tank.
Exterior dimensions: Dia Ø 3600/3850 mm Total H 10800 mm
Cylinder height 10000 mm
Vertical, isolated stainless steel tank.
Conical bottom with 4" outlet,
Conical top with cip and ventilation.

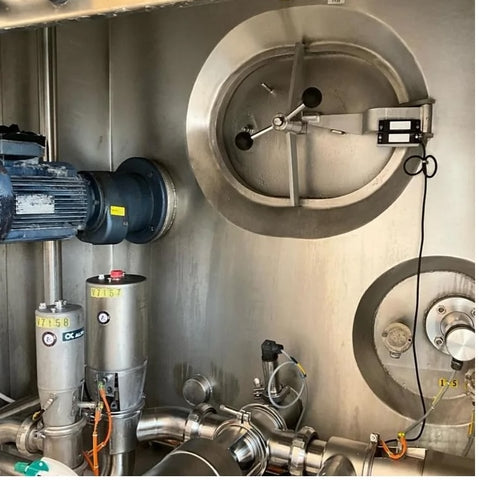

Manhole and side mounted agitator at bottom
Insulated wtih 100 mm rockwool.
AISI 304
The cladding on the top of silo with new insulation and plates will be repaired before delivery
